Emergent Locomotion Patterns of a Snake Robot through Reinforcement Learning

Abstract

Traditional gait design for snake robots has long relied on geometric models inspired by biological snakes. However, due to the inherent morphological discrepancies between biological snakes and robotic systems, these conventional models are not always optimal for snake robots. In this study, we propose an adaptive gait that exploits the robot's unique dynamics without depending on predefined geometric models. Utilizing the highly parallel physics simulator NVIDIA Isaac Lab and the RSL-RL library, we conducted locomotion task training for a snake robot with ten redundant degrees of freedom (DoF) across random step fields. Experimental results demonstrated that the acquired policy autonomously emerged dynamic gaits capable of traversing unstructured terrains where conventional locomotion based on simple sine waves typically fails. The robot effectively utilized environmental protrusions as leverage for propulsion, three-dimensionally transforming its body to overcome obstacles. Although these gaits deviate from mathematically predefined periodic motions, they exhibit rational characteristics approximating biological sidewinding as a direct consequence of physical constraints. Comparative experiments with geometric models validated that the learned policy possesses enhanced robustness and environmental adaptability in rugged terrains. Our findings suggest that locomotion strategies leveraging a robot's unique embodiment can further enhance performance, extending the capabilities of snake robots beyond the conventional framework of pure biomimetics.

Method

Robot Model

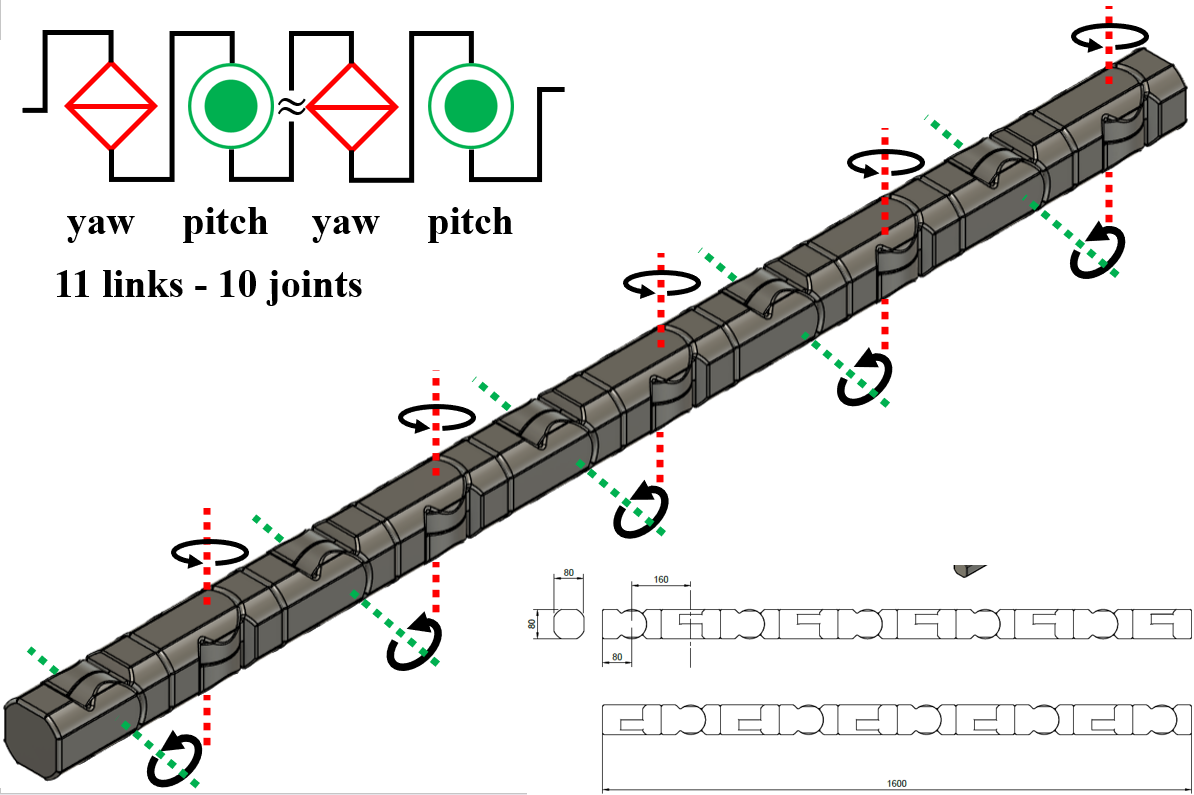

11-link snake robot with 10 alternating yaw/pitch joints. Total length: 1,600 mm. Servomotor: XM540-W270R (Robotis), max angular velocity 6 rad/s during training.

Observation Space (56-D)

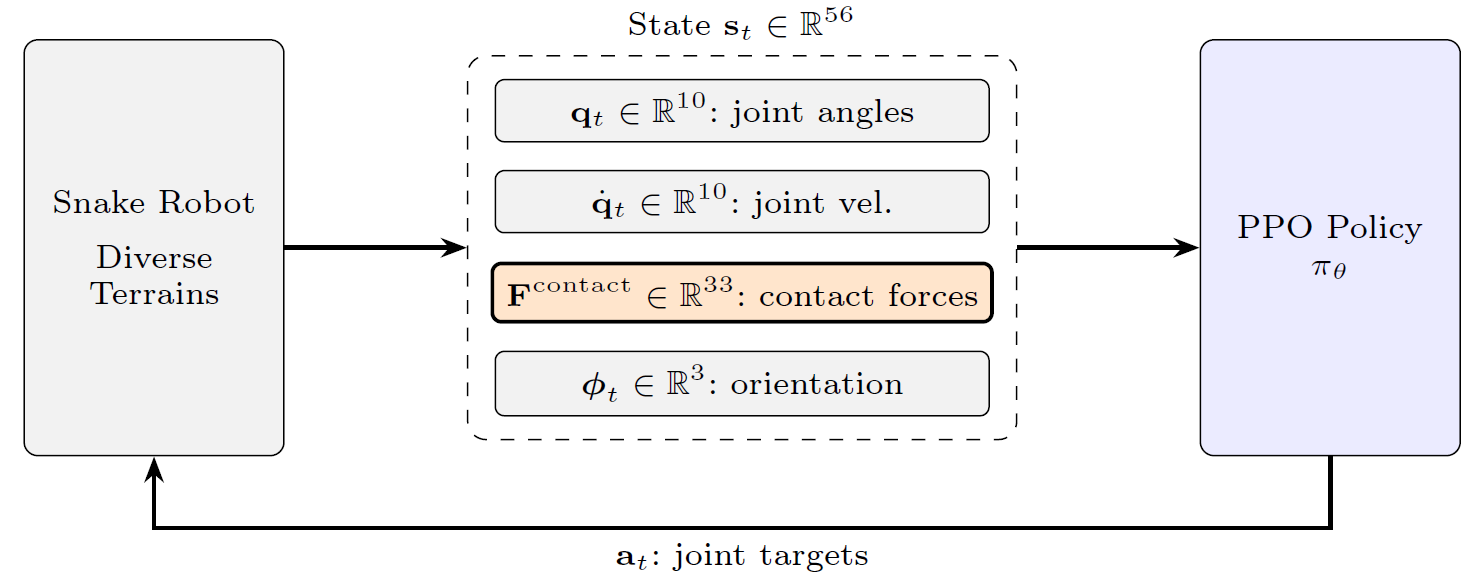

10 joint positions + 10 joint velocities + 33 contact force components (11 links × 3 axes) + 3 global orientation angles. No predefined gait patterns.

Training

PPO via RSL-RL in NVIDIA Isaac Lab. 4,000 parallel environments across 4 procedurally generated terrain types. Target forward velocity: 0.5 m/s.

Fig. 2
Procedural training environments:
(A) Pyramidal Stairs & Pits (B) Random Grid (Boxes) (C) Random Rough Surface (D) Pyramidal Slopes

Fig. 2: Procedural training environments. Four terrain types are randomly generated to train diverse locomotion strategies. Place assets/figures/fig2_terrain.png here.

Results

Note: The figures below compare the learned RL policy against a conventional geometric sidewinding model (sinusoidal gait, A = 1.2 rad, ω = 0.50 Hz). Replace the placeholders with figures from the paper or simulation outputs.

Fig. 1
Snake robot overview
(11 links, 10 joints)

Fig. 1: Overview of the snake robot. Place assets/figures/fig1_robot.png here.

Fig. 3(b)
Geometric sidewinding model
Joint angles on flat ground

Fig. 3(b): Joint angles of the geometric sidewinding model on flat ground. Constant periodic waveform across all joints. Place assets/figures/fig3b_geometric.png here.

Fig. 3(a)
Learned RL policy
Joint angles on flat ground

Fig. 3(a): Joint angles of the learned policy on flat ground. The policy dynamically adjusts amplitude and period of each joint in response to the immediate state. Place assets/figures/fig3a_learned.png here.

Fig. 4
Center-of-mass trajectories
Learned vs. geometric model

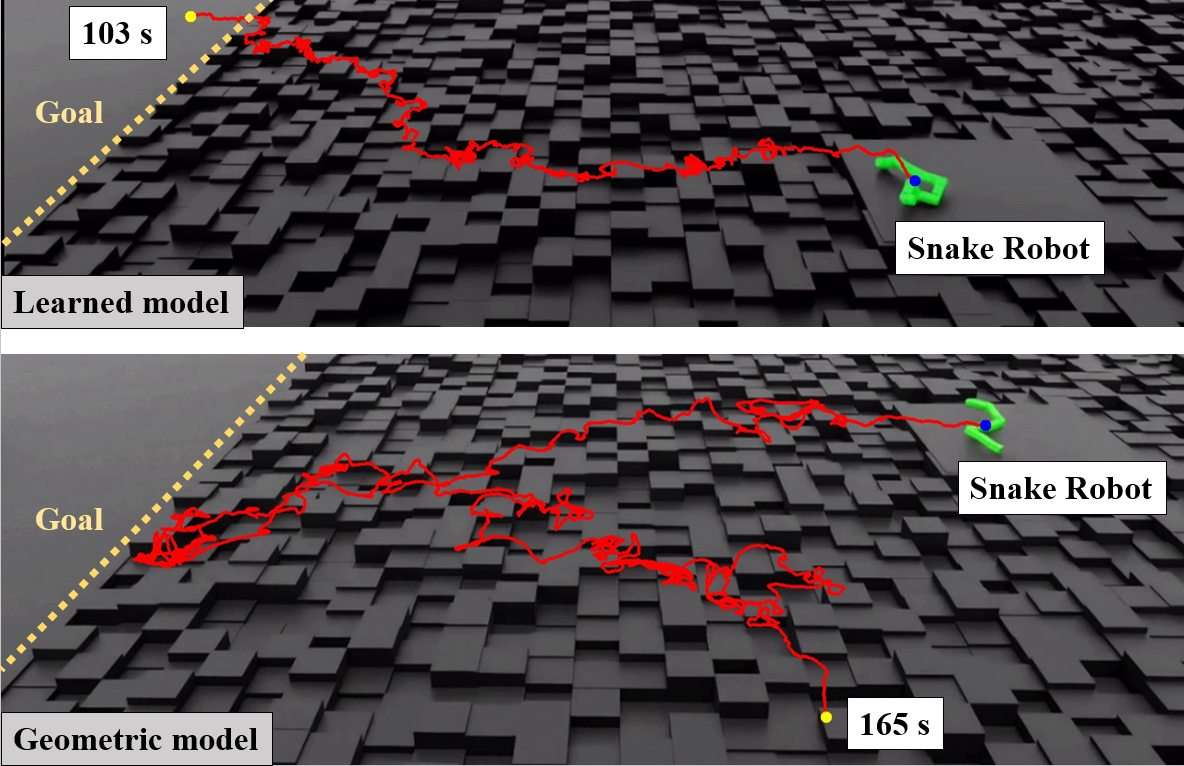

Fig. 4: Comparison of center-of-mass (CoM) trajectories. The RL policy exhibits greater robustness and adaptability. Place assets/figures/fig4_com.png here.

Simulation Videos

Note: Videos showing the learned RL policy and the geometric sidewinding baseline across different terrain types. Place video files in assets/videos/ to replace the placeholders.

▶

Coming Soon Learned policy — Rough terrain

Learned RL policy traversing rough terrain (random step fields). The robot autonomously adapts its gait to exploit environmental protrusions.

▶

Coming Soon Geometric model — Rough terrain

Conventional geometric sidewinding model (A = 1.2 rad, ω = 0.50 Hz) on rough terrain. Baseline comparison.

▶

Coming Soon Learned policy — Flat terrain

Learned RL policy on flat ground. The emergent gait approximates biological sidewinding as a consequence of physical constraints.

▶

Coming Soon Geometric model — Flat terrain

Geometric sidewinding model on flat ground. Maintains a constant periodic waveform across all joints.
